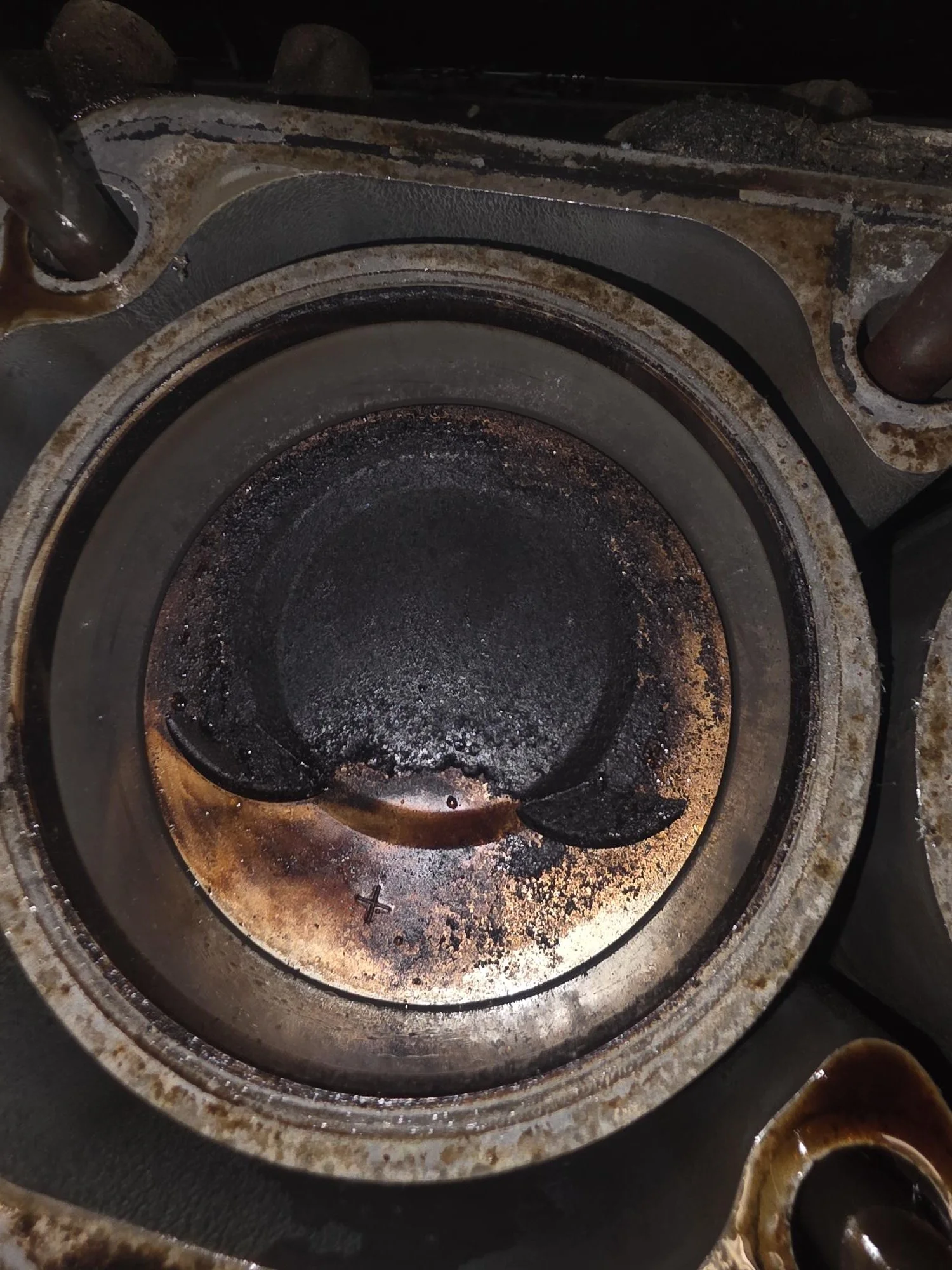

Porsche 944 2.5L Alusil piston crown exhibiting extreme carbon loading; diagnostic evidence of total valve stem seal failure in Bend, Oregon.

Stuttgart Performance & Forensic Metrology

Porsche Mechanic: The Surgical Standard for Performance Engineering

A Porsche is a high-revving ecosystem of lightweight materials, balanced kinematics, and microscopic tolerances. Designed for the limit, its stewardship demands a level of diagnostic rigor far beyond the dealership checklist. At Chuck’s Auto Shop Inc., we treat your Porsche with the respect its pedigree commands—combining forty years of mechanical intuition with the digital precision required for modern Stuttgart engineering.

From air-cooled heritage icons and transaxle pioneers to modern water-cooled GT cars and twin-turbo platforms, we bridge the gap between classic craftsmanship and factory-level digital metrology. We view mechanical stewardship not as component replacement, but as the active preservation of Stuttgart's original engineering intent.

I. The Flat-Six Lifecycle: Proactive Stewardship

Water-cooled flat-six engines (M96/M97, 9A1, and beyond) are engineering benchmarks, but they feature critical watch points. In the High Desert's rapid thermal swings, Air-Oil Separator (AOS) diaphragm failures cause severe crankcase vacuum loss and oil ingestion, while unmonitored factory single-row IMS bearings on 996 and early 997 platforms risk catastrophic timing loss.

The Chuck’s Standard

We perform proactive IMS bearing analysis and engineered retrofit solutions before catastrophic failure occurs. We monitor crankcase manometer depression to replace failing AOS units before oil ingestion fouls intake tracks and catalytic converters.

II. Alusil Stewardship: Differentiating Carbon from Scoring

Many shops misdiagnose cold-start blue smoke as terminal Alusil cylinder bore scoring, unnecessarily writing off salvageable blocks. In reality, degraded valve stem seals allow oil to seep onto piston crowns, chronically carbon-locking the compression and oil control rings into their lands.

The Chuck’s Standard

We deploy high-definition optical borescopes to verify the healthy grey-tone silicon crystal matrix. We replace hardened valve stem seals and execute our proprietary inverted block purge—pressurizing chemical solvent flushes at 30 PSI to emulsify ring-land carbon, restoring ring spring tension, followed by vacuum extraction and a tenaceous boundary oil-soak prior to crank rotation.

III. The 944 Alusil Restoration Protocol

The transaxle Porsche 944 pioneered high-silicon aluminum block architecture. Decades of heat cycling harden valve guide seals, causing severe oil intrusion that leads many general repair shops to prematurely discard these 2.5L and 3.0L engines as scrap.

The Chuck’s Standard

We reject the notion that these classic blocks are disposable. We perform optical silicon-matrix audits, utilize our 30-PSI pressure-purge decarbonization to unstick oil control rings without etching bore surfaces, and coordinate precision machine-lab Sunnen-platform Alusil honing when zero-hour silicon exposure is required.

IV. Drivetrain Integrity: The ZF & PDK Standard

Whether running a lightning-quick dual-clutch PDK (Doppelkupplung) or a ZF 8HP torque-converter gearbox, factory "lifetime fluid" claims are an engineering fiction. Fluid degradation fouls microscopic electro-hydraulic valve solenoids, leading to clutch slippage, harsh engagements, and thermal breakdown.

The Chuck’s Standard

We service PDK and ZF gearboxes every 50,000–60,000 miles. We execute a Magnetic Particulate Audit on pan magnets to inspect for mechanical wear, replace internal pan/filters, and perform a full Diagnostic Adaptation Reset so the transmission control module recalibrates clutch fill pressures to fresh fluid chemistry.

Central Oregon Marque Coverage: Providing surgical-grade Porsche maintenance, mechanical stewardship, and forensic diagnostics for Bend, Redmond, Madras, Sunriver, Prineville, La Pine, Tumalo, and surrounding Oregon communities since 1985.

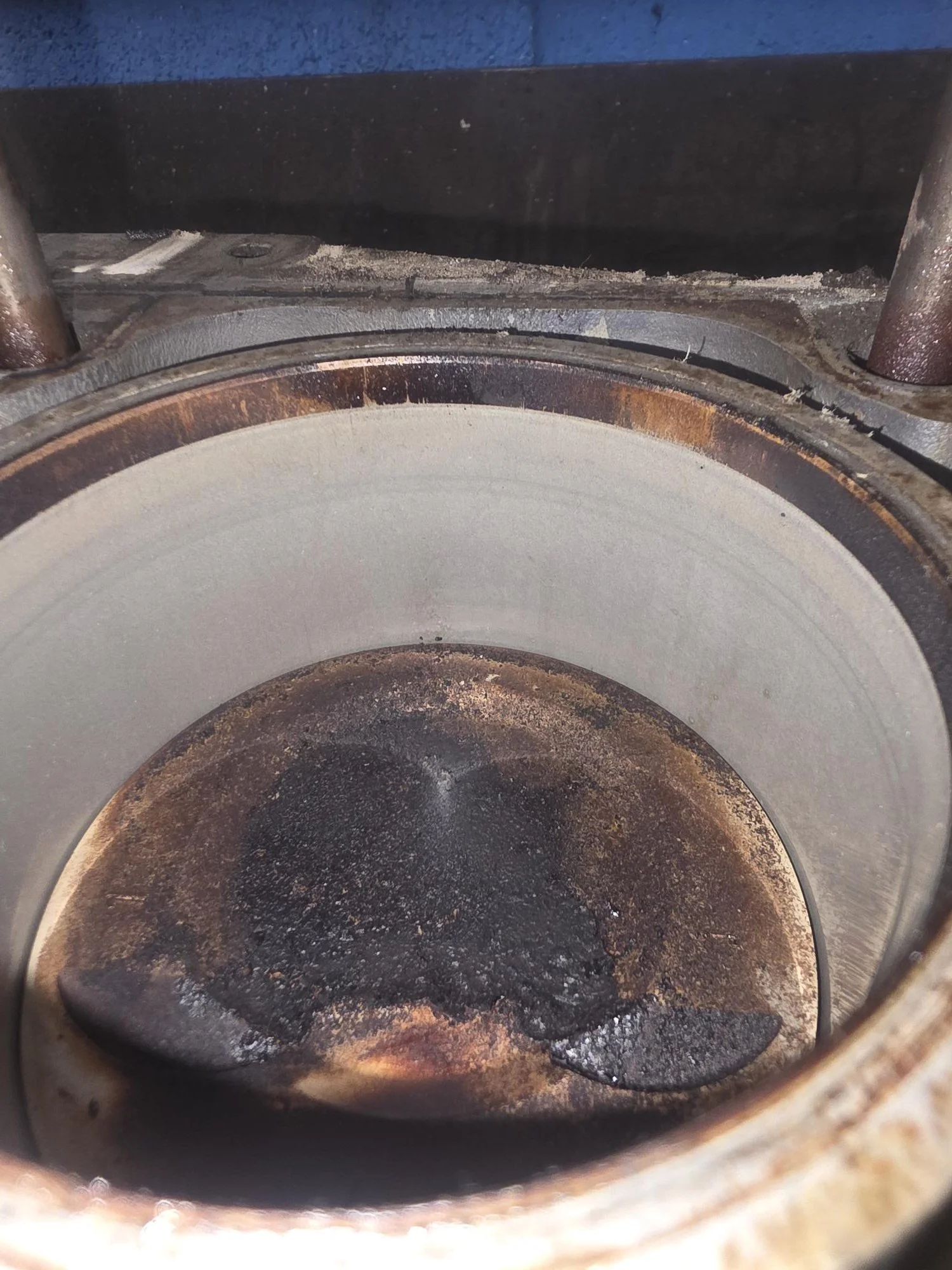

Detailed forensic view of oil-saturated carbon deposits on a Porsche 944 piston; verifying zero cylinder wall scoring before pressurized ring-land purge.

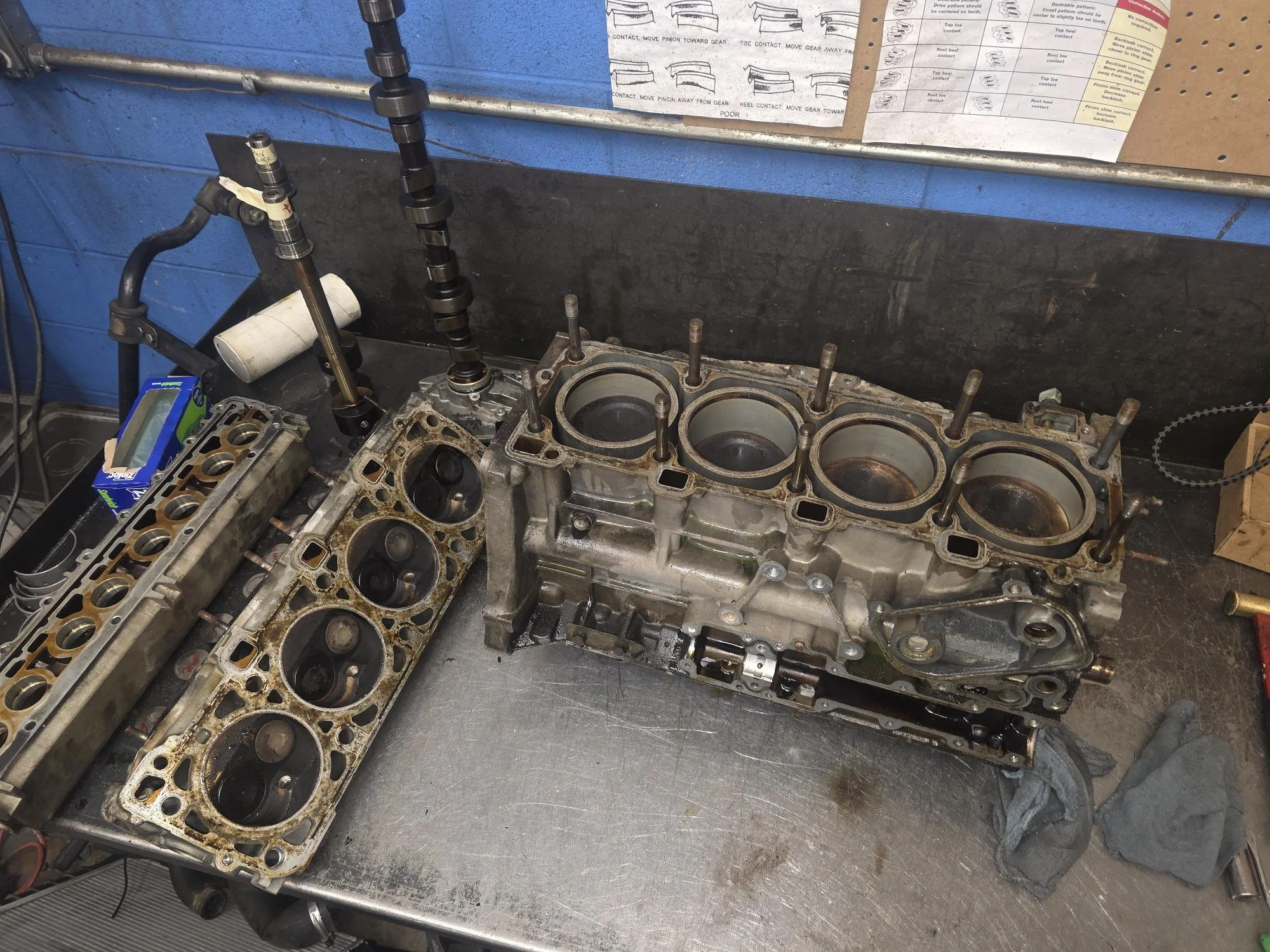

Full forensic teardown of a Porsche 944 inline-four; Alusil block and head assembly prepped for surgical valve stem seal restoration at Chuck's Auto Shop Inc.

Porsche Repair & Service Reviews

Forensic Stewardship Evidence from Central Oregon Porsche Owners

"I live 5hrs from them and still make the drive for quality work. Plus they always have great advice and not to mention the beautiful cars. Any foreign vehicles I recommend taking it to them!"

— Kory Allen, Foreign Vehicle Owner

VERIFY OFFICIAL AUDIT ON GOOGLE MAPS →
ACCESS FULL STEWARDSHIP REGISTRY

Official Archive: /verified-stewardship-registry

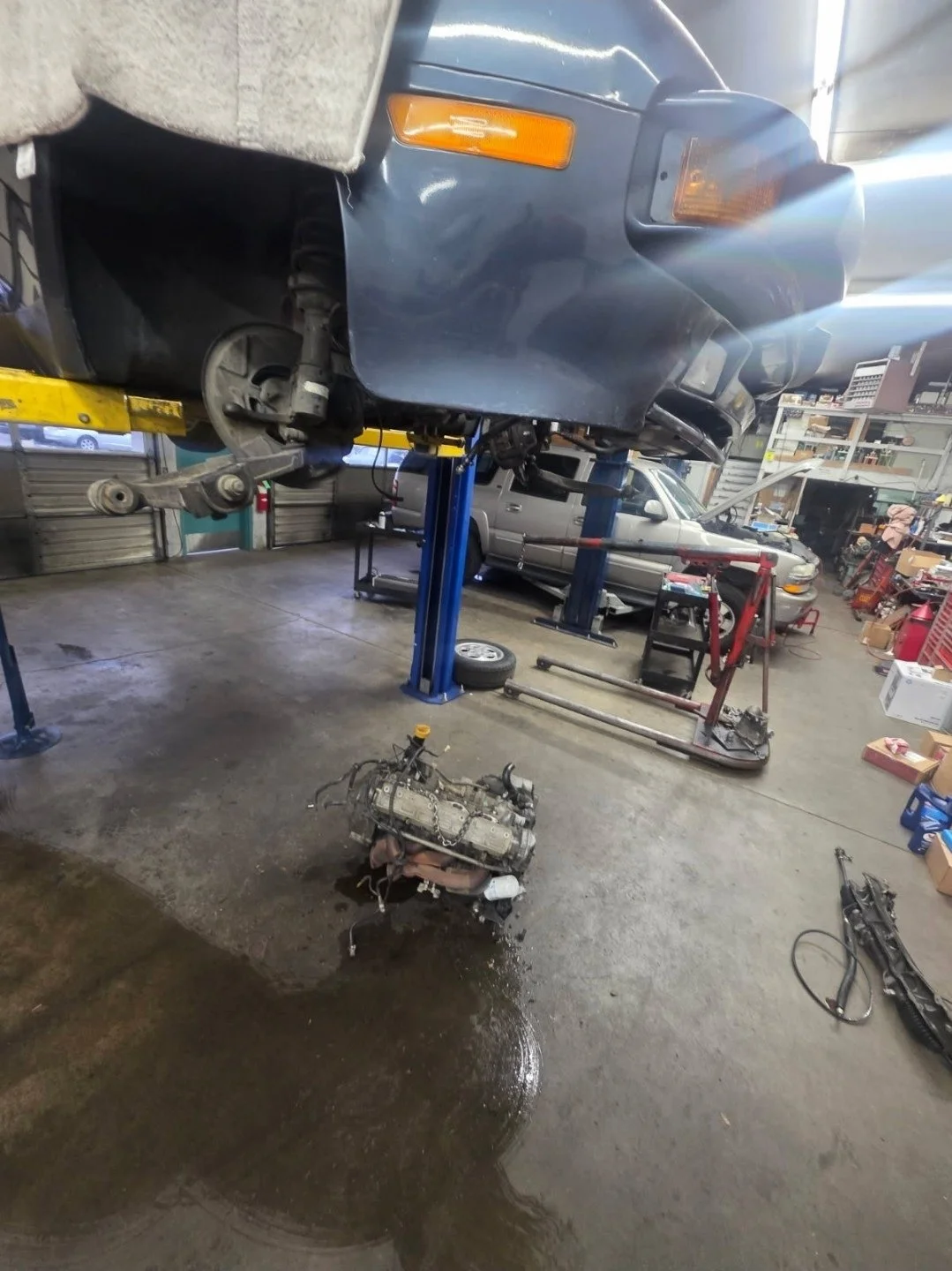

Porsche undergoing major engine repairs at Chucks Auto Shop Inc. in Bend Oregon\
